ALUMINIUM PROFILED SHEET EDGE CLAMP BFK
Application
Clamp for aluminum-profiled roof sheet to fix Channel 41.
Scope of delivery
Clamp with clamping screw and one hex-drive bit per packaging unit included.
Installation

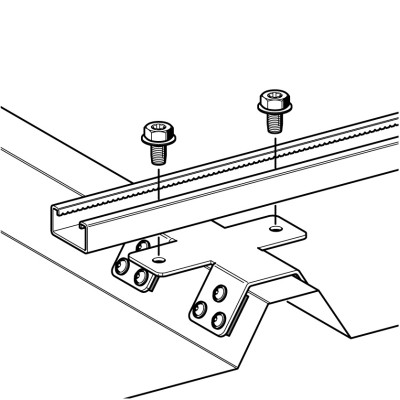

1. Position the clamp to the edge seam and tighten it up to 17 Nm;
2. Apply the channel and fix it with Flange Screw M10x15.
Technical Data
Max. perm. load vertical to the roof: 1.5 - 4.0 kN depending on the roof structure
Edge seam thickness: ≤ 7.0 mm
Material: Aluminium.
![ALUMINIUM PROFILED SHEET EDGE CLAMP BFK](/pim.prosystemitalia.com/storage/private/files/Image_set_categorie_b2b/35d37de9603707b7ace82c1190f8c8b15f781bac.jpg)
![ALUMINIUM PROFILED SHEET EDGE CLAMP BFK](/pim.prosystemitalia.com/storage/private/files/Image_set_categorie_b2b/de022235ec67c7d8f4aeed9b903f2036df4e8cd7.jpg)
Code | Name | Weight | Number of pieces | ||
---|---|---|---|---|---|
111468 | TBH1 HCP | 0.28 | 10 | Information request |
