RATIO S-K FOR PLASTIC PIPES

RATIO S-K FOR PLASTIC PIPES

Download PDF
Information request

Application

Two-piece clamp with quick-set clip and special lining for installing coated and uncoated plastic pipes of DIN and ANSI standard. No diffusion of plasticisers from the lining material into the plastic pipe. For ceiling, floor and wall mounting. Connections without adapter: M8, M10. Connections with Adapter (see this chapter): M12, M16, R 1/2", R 3/4" and R 1".

Up to size 110 equipped with spacers which allow sliding. To stop sliding, the spacers can be detached. For sliding installations from 4" on, we recommend the use of Pipe Clamp Stabil D-3G with Slide Set or Slide Element.



Scope of delivery

Two-piece pipe clamp pre-assembled on one side. With patented quick-set clip on its open side.

Sizes 40 and larger have a 3G triple thread nut which is inserted and welded. Up to size 110 supplied with spacers.



Technical Data

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Plastic pipe
OD [mm]		Max. perm.
working load [kN]		Material
W x th
[mm]		Thread

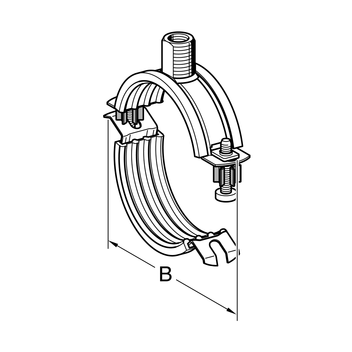

connection		B
[mm]
16 0,65 20 x 1.5 M10/M8 55
20 0,65 20 x 1.5 M10/M8 61
25 0,65 20 x 1.5 M10/M8 61
32 0,65 20 x 1.5 M10/M8 71
40 0,65 20 x 1.5 M16/M10/M8 82
50 0,65 20 x 1.5 M16/M10/M8 93
56 0,65 20 x 1.5 M16/M10/M8 104
63 0,65 20 x 1.5 M16/M10/M8 112
75 0,65 20 x 1.5 M16/M10/M8 121
90 1,0 25 x 2.0 M16/M10/M8 141
110 1,2 30 x 2.0 M16/M10/M8 170
160 30 x 2,0 M16/M10/M8 230



Material:

- Clamp: Cold-worked steel, electro-galvanised;

- Spacers: Polypropylene (PP);



- Lining:

  Rubber profile: SBR/EPDM, beige

  Temperature: range -50°C up to +110°C

  Hardness: 55+ / -5° Shore

  Fire resistance: Material Category B2 (DIN 4102), non-dripping

  Tear strength: 600 N/cm2

  Breaking elongation: 450 %

  Impact absorption: 45 %

  Durability: Weatherproof, ageing and ozone- resistant (DIN 53508 and DIN 53509).



RATIO S-K FOR PLASTIC PIPES
RATIO S-K FOR PLASTIC PIPES
Code Name Weight Number of pieces
148771 16 mm 0.06 100 Information request
148780 20 mm 0.07 100 Information request
148799 25 mm 0.07 100 Information request
148805 32 mm 0.07 100 Information request
148814 40 mm 0.09 50 Information request
148823 50 mm 0.10 50 Information request
148832 56 mm 0.11 50 Information request
148841 63 mm 0.11 50 Information request
148850 75 mm 0.13 25 Information request
155993 90 mm 0.22 25 Information request
156000 110 mm 0.33 25 Information request
117541 160 mm 0.42 25 Information request
117542 160 mm 0.42 25 Information request
