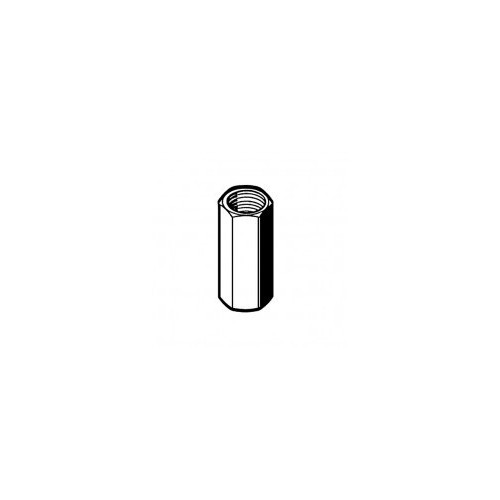

ADAPTER F/F HCP
Application
Adapter to be seen as expansion of the connection possibilities - to be used for all Sikla Pipe Clamps with 3G-thread, Fixed Points and Threaded Tubes 1/2".
Technical Data
Material: Steel, HCP.
Type | Length [mm] |
A/F [mm] |
1/2"/M10 | 35 | 24 |
1/2"/M12 | 35 | 24 |
1/2"/3/8" | 40 | 24 |
1/2"/1/2" | 35 | 24 |
1/2"/M16 | 40 | 24 |
Code | Name | Weight | Number of pieces | ||
---|---|---|---|---|---|
112163 | 1/2''/M10 L=35 mm | 0.07 | 10 | Information request | |
112164 | 1/2''/M12 L=35 mm | 0.07 | 10 | Information request | |
112165 | 1/2''/3/8'' L=40 mm | 0.06 | 25 | Information request | |
112166 | 1/2''/1/2'' L=35 mm | 0.05 | 10 | Information request | |
112167 | 1/2''/M16 L=40 mm | 0.07 | 25 | Information request | |
124665Z | 0.05 | 50 | Information request |
