END SUPPORT WBD F 100/160
Application

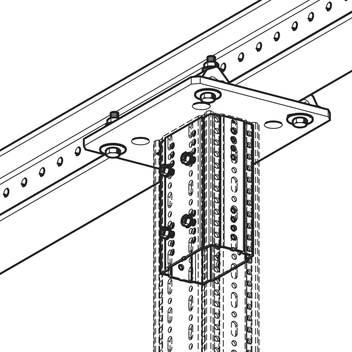

Plug-in component designed to create a square endplate at the open end of a Beam Section TP F100 or a Beam Bracket.
Installation
Depending on the situation, different options are recommended:
a) Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert;
b) To traditional steel beams between 80 – 300 mm flange dimensions: 1x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert;
c) To traditional steel beams > 120 flange dimension: with on-demand Adaptor Plate (tbc).
The Beam Section TP F 100/160 connected to the End Support WBD F 100/160 has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary.
Technical Data
Type | For flange width [mm] | Dimensions of base plate [mm] | Slots in base plate for | H [mm] |
---|---|---|---|---|
WBD F 100/160-121/160 | 121 - 160 | 320 x 260 x 12 | M12 | 232 |
WBD F 100/160-161/200 | 161 - 200 | 320 x 310 x 12 | M16 | 232 |
WBD F 100/160-201/300 | 201 - 300 | 420 x 220 x 12 | M16 | 232 |
Configuration: Base plate welded to square F 100/60.
Material:
- Plate: Steel, HCP;
- Square F 100: Steel, HCP.
Approvals
CE mark, according to EN 1090.
![END SUPPORT WBD F 100/160](/pim.prosystemitalia.com/storage/private/files/Image_set_categorie_b2b/7374c5126351b7dabfba7c5a9900e4c9fa39ace1.png)
![END SUPPORT WBD F 100/160](/pim.prosystemitalia.com/storage/private/files/Image_set_categorie_b2b/7dd3d137c2b4df68b75177e96bddb4b4a6225745.png)
Code | Name | Weight | Number of pieces | ||
---|---|---|---|---|---|
113098 | F 100/160 - 121/160 | 10.54 | 1 | Information request | |
113099 | F 100/160 - 161/200 | 11.95 | 1 | Information request | |
113100 | F 100/160 - 201/300 | 11.14 | 1 | Information request |
