CHANNEL EXTENSION ST 41

CHANNEL EXTENSION ST 41

Application

Highly variable extension piece for channels and channel constructions.

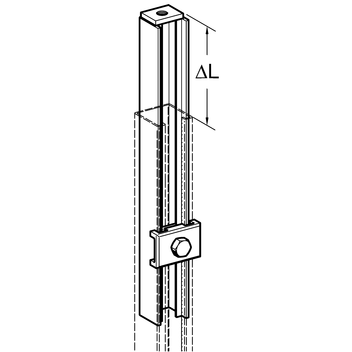

- Continuously variable from 0 up to 200 mm, simple adjustment, especially for elevated constructions;

- Ideal for the laying of individual or several pipelines with obligatory declines and for compensation of large tolerances of the building apart from the plans;

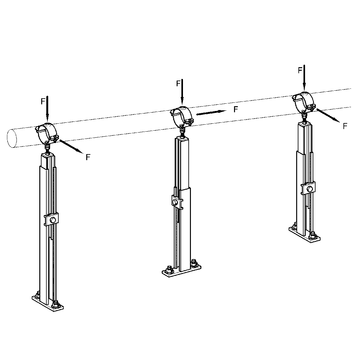

- In combination with Sikla Cantilever Brackets 41/41 continuously variable supports up to 1.2 m height are possible.



Suitable for all Sikla Channels MS 41 (height ≥ 41 mm).



Scope of delivery

Complete component with pre-assembled Holding Bracket.



Technical Data

Max permanent load Fperm Advance for torque 40 Nm = 1.5 kN



Material: Steel, electro-galvanised.

Thread connection: M10



CHANNEL EXTENSION ST 41
CHANNEL EXTENSION ST 41
CHANNEL EXTENSION ST 41
Code Name Weight Number of pieces
189740 ST 41 0.68 10 Information request
