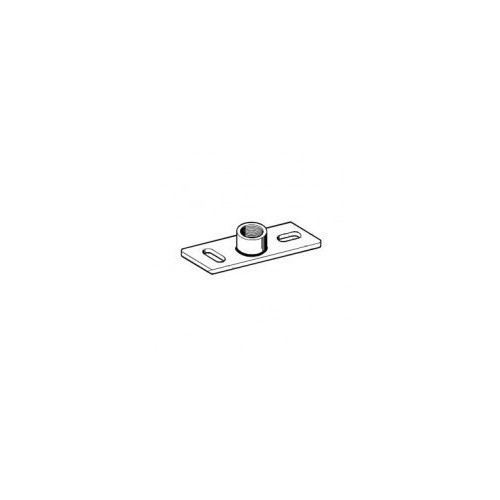

MOUNTING PLATE GPL SS
Application
For wall, ceiling and floor installation for mounting elements in M&E services.
Technical Data
The nominal loads mentioned shouldn't be exceeded. Permissible anchor values may restrict the application.
Versione/ Tipo | Max carico di sicurezza [kN] | Max momento flettente* [Nm] | Braccio massimo Lmax [mm] | Dimension L x W x Th [mm] | Elongated hole d x a[mm] | Centre distance l |
---|---|---|---|---|---|---|
Stabil M8 | 3.0 | 8.8 | 150 | 120 x 40 x 4 | 11 x 25 | 80 |
Stabil M10 | 3.0 | 17.2 | 200 | 120 x 40 x 4 | 11 x 25 | 80 |
Stabil M12 | 3.0 | 29.6 | 300 | 120 x 40 x 4 | 11 x 25 | 80 |
Stabil M16 | 4.5 | 70.3 | 300 | 120 x 40 x 4 | 11 x 25 | 80 |
Stabil R 1/2" | 4.5 | 95.0 | 350 | 120 x 40 x 4 | 11 x 25 | 80 |
Stabil R 3/4" | 6.2 | 180.0 | 450 | 120 x 40 x 4 | 11 x 25 | 80 |
*Limitation caused by the Mounting Plate or the loading capacity of the grub screw or of the threaded tube.
σperm ≤ 160 N/mm2 fperm < 5 mm
Material:Stainless steel A4
![MOUNTING PLATE GPL SS](/pim.prosystemitalia.com/storage/private/files/Image_set_categorie_b2b/66159b5af43c3768fe24d56d86a804176370bb57.png)
![MOUNTING PLATE GPL SS](/pim.prosystemitalia.com/storage/private/files/Image_set_categorie_b2b/8a3e4f00875d1c1c32777d333f06e7da2676ee47.png)
Code | Name | Weight | Number of pieces | ||
---|---|---|---|---|---|
107608 | M 8 A4 | 0.14 | 50 | Information request | |
107617 | M10 A4 | 0.14 | 50 | Information request | |
107626 | M12 A4 | 0.14 | 50 | Information request | |
107635 | M16 A4 | 0.16 | 50 | Information request | |
107644 | 1/2'' A4 | 0.16 | 50 | Information request | |
107653 | 3/4'' A4 | 0.17 | 50 | Information request |
