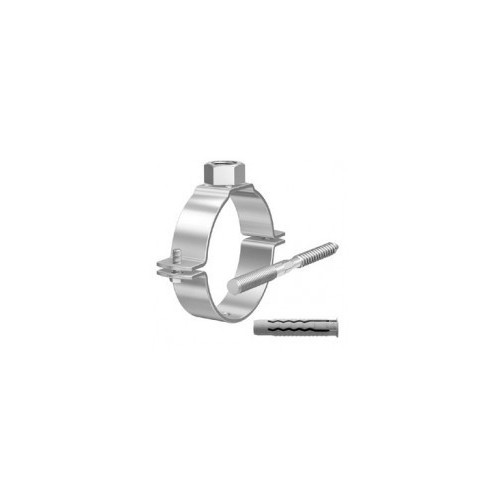

PRATIK BZ WITH PIN AND WEDGE
Application
Collar composed of two clamps, with threaded M 8 up to a size of 2 "and from 2 1/2" with M10 for fixing pipes in civil works. Including of threaded rod and nylon plug. Suitable for fixing to wall, ceiling or floor.
Don't use in the presence of thermal expansion.
Scope of delivery
Complete with rod and plug.
Technical Data
Material: Steel, electro-galvanised.
Connection: hex nut electro-welded.
Type | Diam. Ext. pipe [mm] | Dimensions material b x s [mm] | Load wall [kN] | Load ceiling [kN] |
---|---|---|---|---|
M8 x 3/8" | 17 - 19 | 20 x 2,4 | 1,25 | 2 |
M8 x 1/2" | 20 - 24 | 20 x 2,4 | 1,25 | 2 |
M8 x 3/4" | 25 - 30 | 20 x 2,4 | 1,25 | 2 |
M8 x 1" | 32 - 36 | 20 x 2,4 | 1,25 | 2 |
M8 x 1" 1/4 | 39 - 44 | 20 x 2,4 | 1,25 | 2 |
M8 x 1" 1/2 | 46 - 50 | 20 x 2,4 | 1,25 | 2 |
M8 x 2" | 58 - 64 | 20 x 2,4 | 1,25 | 2 |
M10 x 2" 1/2 | 74 - 80 | 29 x 2,4 | 2 | 5 |
M10 x 3" | 84 - 89 | 29 x 2,4 | 2 | 5 |
M10 x 4" | 112 - 118 | 29 x 2,4 | 2 | 5 |
M10 x 5" | 135 - 142 | 29 x 2,4 | 2 | 5 |
M10 x 6" | 165 - 171 | 29 x 2,4 | 2 | 5 |
Code | Name | Weight | Number of pieces | ||
---|---|---|---|---|---|
391211 | 3/8'' | 0.13 | 100 | Information request | |
391221 | 1/2'' | 0.14 | 100 | Information request | |
391231 | 3/4'' | 0.15 | 100 | Information request | |
391241 | 1'' | 0.15 | 100 | Information request | |
391251 | 1 1/4'' | 0.16 | 100 | Information request | |
391261 | 1 1/2'' | 0.17 | 100 | Information request | |
391271 | 2'' | 0.31 | 100 | Information request | |
391281 | 2 1/2'' | 0.32 | 50 | Information request | |
391291 | 3'' | 0.33 | 50 | Information request | |
391301 | 4'' | 0.39 | 50 | Information request | |
391311 | 5'' | 0.42 | 50 | Information request | |
391321 | 6'' | 0.46 | 50 | Information request |
