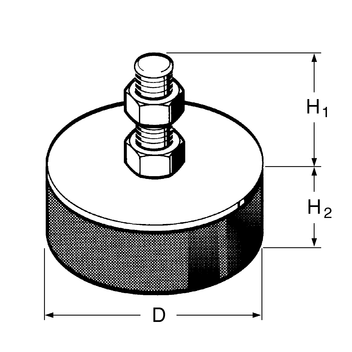

RUBBER-METAL-COMBINATION ELEMENT GMT
Application
The Rubber-Metal Combination Element GMT suppresses vibrations originating from various systems. Such vibrations generated by the system (such as motors, boilers..) are normally transmitted as sound to the environment via rigid building structures. The mounting situation does not affect the efficiency of the Rubber-Metal Combination Element GMT, this element may also be applied as a horizontal stop buffer.
Scope of delivery
1 Set = 4 elements
Each element is accompanied by two hexagon nuts.
Technical Data
| Type | Maximum load Fmax [kN] | Mean spring constant c [kN/mm] |
|---|---|---|
| M12 | 5.0 | 2.2 |
Temperature range: -30°C up to +70°C
Material:
- Sound absorption insert: Natural rubber, 57+/-5° Shore;
- Metal parts: Steel, electro-galvanised.
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 117090 | GMT M12 Conf. da 4 pz | 1.14 | 1 | Information request | |
| 193983 | AKE M8 | 0.09 | 25 | Information request |
