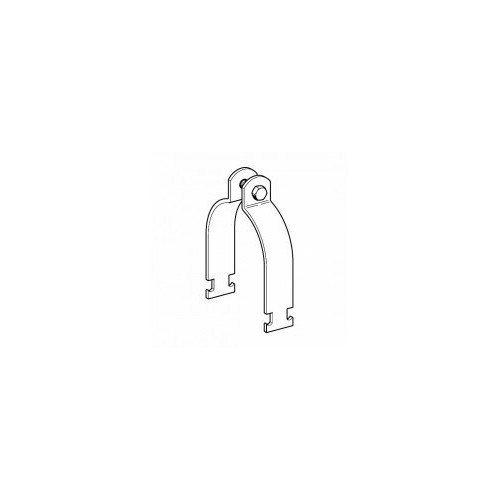

UNIVERSAL PIPE CLAMP FOR CHANNEL 41
Application
Suitable for the support of piping support or wall units. Particularly suitable as an alternative to the U-bolts for mounting brackets or channel. Material in two pieces, with a screw and nut (included).
Suitable for the support of piping support or wall units. Particularly suitable as an alternative to the U-bolts for mounting brackets or channel. Material in two pieces, with a screw and nut (included).
Technical Data
Material: Steel, electro-galvanised.
Material wide for all sizes: 32 mm
Type | Diam.pipe [mm] | Diam. pipe [inch] |
---|---|---|
22 | 20-22 | 1/2'' |
28 | 25-28 | 3/4'' |
35 | 30-35 | 1'' |
45 | 36-44 | 1" 1/4 |
50 | 45-50 | 1" 1/2 |
63 | 60-63 | 2'' |
70 | 65-70 | |
80 | 75-80 | 2" 1/2 |
90 | 84-90 | 3'' |
100 | 97-100 | |
115 | 110-115 | 4'' |
140 | 134-140 | 5'' |
150 | 144-150 | |
160 | 154-160 | |
168 | 160-168 | 6'' |
180 | 174-180 | |
200 | 194-200 | |
220 | 219-225 | 8'' |
250 | 244-250 | |
273 | 267-273 | 10'' |
315 | 309-324 | 12'' |
Code | Name | Weight | Number of pieces | ||
---|---|---|---|---|---|
181784 | 20 - 22 mm ½'' | 0.06 | 100 | Information request | |
181847 | 38 - 42 mm | 0.10 | 50 | Information request | |
181791 | 20 - 22 mm ½'' | 0.06 | 100 | Information request | |
181785 | 20 - 22 mm ½'' | 0.06 | 100 | Information request | |
181793 | 20 - 22 mm ½'' | 0.06 | 100 | Information request | |
181789 | 20 - 22 mm ½'' | 0.06 | 100 | Information request | |
181811 | 25 - 28 mm ¾'' | 0.07 | 100 | Information request | |
181829 | 30 - 35 mm 1'' | 0.08 | 50 | Information request | |
181856 | 42 - 45 mm 1 ¼'' | 0.11 | 50 | Information request | |
181865 | 45 - 50 mm 1 ½'' | 0.13 | 50 | Information request | |
181867 | 0.13 | 50 | Information request | ||
181892 | 60 - 63 mm 2'' | 0.14 | 25 | Information request | |
181910 | 65 - 70 mm | 0.16 | 25 | Information request | |
181928 | 75 - 80 mm 2 ½'' | 0.21 | 25 | Information request | |
181937 | 84 - 90 mm 3'' | 0.23 | 25 | Information request | |
181939 | 0.23 | 25 | Information request | ||
181964 | 104 - 110 mm | 0.26 | 25 | Information request | |
181973 | 110 - 115 mm 4'' | 0.28 | 25 | Information request | |
181994 | 134 - 140 mm 5'' | 0.40 | 25 | Information request | |
182000 | 134 - 140 mm 5'' | 0.40 | 25 | Information request | |
182027 | 160 - 168 mm 6'' | 0.45 | 20 | Information request | |
182054 | 194 - 200 mm | 0.65 | 30 | Information request | |
182057 | 194 - 200 mm | 0.65 | 30 | Information request | |
182072 | 219 - 225 mm 8'' | 0.69 | 30 | Information request | |
182081 | 244 - 250 mm | 0.76 | 20 | Information request | |
182090 | 267 - 273 mm 10'' | 0.89 | 20 | Information request | |
182108 | 309 - 324 mm 12'' | - | 15 | Information request |
