MOUNTING PLATE GPL F 80
Application

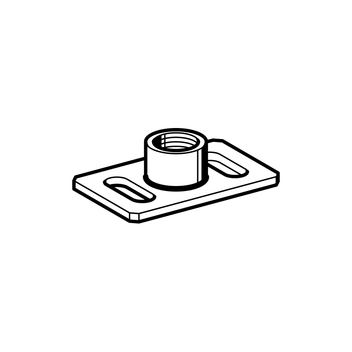

Interface component to connect threaded bar and threaded tube to Beam Section F80.
Installation
Requires 2 x Self Forming Screw FLS per Mounting Plate GPL.
Technical Data
| Type |
Max. tension [kN] | Max. lateral force [kN] | Max. Bending moment [kN] | Dimensions of base plate [mm] |
|---|---|---|---|---|
| GPL F 80-1/2" | 8 | 13 | 53 | 80 x 50 x 4 |
| GPL F 80-M10" | 8 | 13 | 15 | 80 x 50 x 4 |
| GPL F 80-M12" | 8 | 13 | 26 | 80 x 50 x 4 |
| GPL F 80-M16" | 8 | 13 | 62 | 80 x 50 x 4 |
Material: Steel, hot-dipped galvanised.
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 113004 | GPL F 80 - M10 | 0.11 | 50 | Information request | |
| 112911 | GPL F 80 - M12 | 0.11 | 50 | Information request | |
| 195833 | GPL F 80 - M16 | 0.15 | 50 | Information request | |
| 192900 | GPL F 80 - 1/2'' | 0.14 | 50 | Information request |
