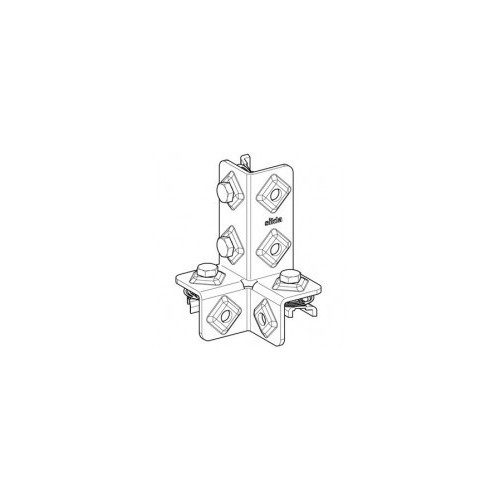

PIASTRA ANGOLARE EV CC 41-5
Application
Pre-assembled connecting element for three-dimensional frame structures, optimised for linking channels of the 41 series at an angle of 90°. Preferably used in combination with 41/41 square channels. The adjustment for the channel opening could still be chosen.
- Fast-Technique for 90° joints of Channel System 41.
- Locks automatically when being put in place and supports its own weight.
- Secure, form-locking, non-positive connection. Serrated Channel Nut with Hexagon Bolt M10.
- Ideal shaping for high stiffness.
- The proven Sikla rhomb guarantees a secure torque and preload force.
Installation
To be used in pairs.
Technical Data
Max. perm. load: 5.0 kN centre load per crossbar fixed with 2 Angle Connectors EV CC 41-5.
Tightening torque: 50 Nm
Material: Steel, electro-galvanised
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 117465 | EV CC41-5 | 0.69 | 10 | Information request |
