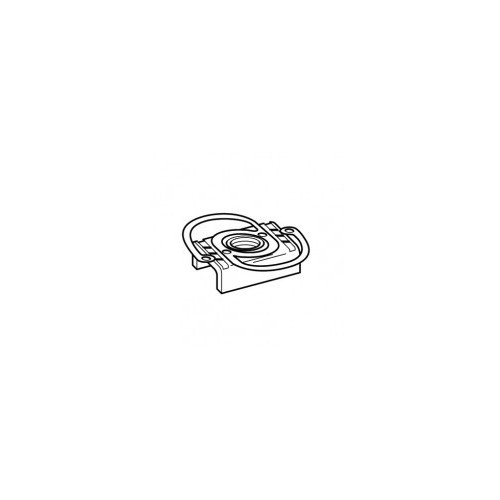

SPEED NUT NT CC 27
Application
In particular useful for installation in vertical channels or where access is difficult.
Further advantages:
- Can be used in all channels 27/27 and 27/15, independent of the channel's height;
- No getting stuck on bolt heads when sliding in the channel;
- No appearance of settlement after tightening.
Scope of delivery
Channel Nut and Spring are tightely connected.
Installation
After inserting the Speed Nut into the channel opening, exert a slight axial pressure. This will cause the nut to turn to the right and engage into the channel. De-installation simply requires the nut to be turned to the left and pulled free. Installation and de-installation do not require tools and may be repeated several times.
Tighten the part to be connected - that's it!
Technical Data
Fz = 1.5 kN
Material:
- Channel nut: Steel, class 5.6, electro-galvanised;
- Spring washer: Sheet metal spring steel, rustproof.
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 195956 | M 6 | 0.01 | 100 | Information request | |
| 195949 | M 8 | 0.01 | 100 | Information request | |
| 117358 | M10 | 0.01 | 100 | Information request |
