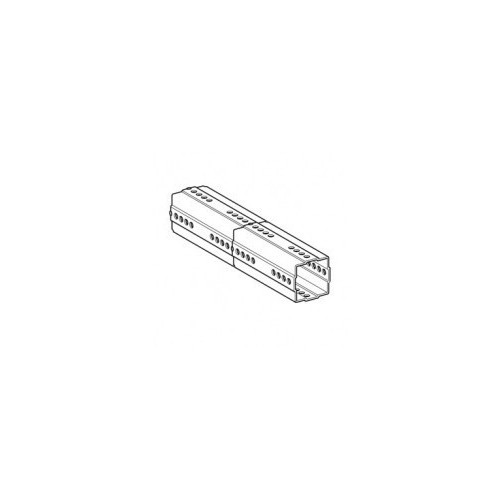

SQUARE COUPLING PK F 80 HCP
Application
Internal splice connecting element for Beam Section TP F 80, particularly suitable for vertical extension. Should the component be used for horizontal application, the bending moment needs to be considered.
Installation
To be fastened with 2 x 4 FLS F Self Forming Screws. For optimal bending moment, distance between screws to be as far from each other as possible.
Notice:
Self Forming Screw FLS F to be fastened on two sides with a distance of minimum of 100mm and to be fastened symmetrically.
To optimise the bending moment the FLS F should be installed to maintain the pipe weight of the effective flow - i.e. screws are located top and bottom for horizontal cross bars not sideways.
Technical Data
| Type | Adm. longitudinal force (tension/pressure) F [kN] | Adm. bending moment Mb [Nm] |
|---|---|---|
| PK F 80 4kt | 10.0 | 500 |
Material: Steel, HCP.
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 111445 | PK F 80 4kt L=360mm | 1.30 | - | Information request |
