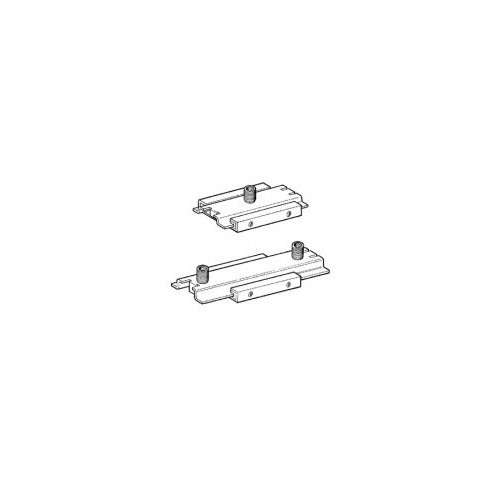

SLIDE SET GS 2G
Application
Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Pipe Clamps Ratio S and Stabil D-3G.
Various connection options with these pipe clamps ranging between M10 and R1". For adapters for these connection options (see Adapter f/f).
Sound absorption by means of glass fibre reinforced PA slide rails.
When using the version ULTRAglide the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.
Technical Data
Permissible load for ceiling mounting: 0.6 kN
Permissible load for floor mounting: 1.2 kN
Lever arm Lmax: 300 mm
Max. sliding distance Type 2G: 85 mm
Max. sliding distance Type 2G2: 140 mm
Temperature range (permanent exposure): 130°C
Version GS:
Static friction coefficient µ0: 0.18
Sliding friction coefficient µ: 0.14
Version GS ULTRAglide:
Static friction coefficient µ0: 0.07
Sliding friction coefficient µ: 0.07
Material:
- Metal components: Steel, electro-galvanised;
- Slide bar: Polyamide, glass fibre reinforced.
- Version ULTRAglide: with additional Nano coating.
Adm. load FZ * under stress of fire
| FWD 30 [N] | FWD 60 [N] | FWD 90 [N] | FWD 120 [N] |
|---|---|---|---|
|
≤ 600
|
≤ 430
|
≤ 280
|
≤ 200
|
FZ = max. adm. tensile load
* The load capacity of connecting elements used is to be respected, this applies in particular under stress of fire.
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 126755 | 2G | 0.38 | 25 | Information request | |
| 126764 | 2G2 | 0.49 | 25 | Information request | |
| 110582 | 2G Ultra glide | 0.38 | - | Information request | |
| 110584 | 2G2 Ultra glide | 0.49 | - | Information request |
