PIPE LOOP RSL N

PIPE LOOP RSL N

Download PDF
Information request

Application

For pipeline installations of fixed fire entinguishing systems, mainly used for sprinkler systems.



Scope of delivery

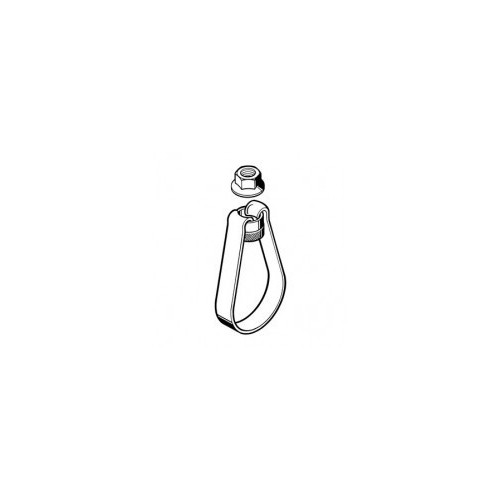

Pipe Loop with rounded edges. Flange nuts and cup nuts are included in loose form.



Technical Data

Material: Steel, galvanised as per DIN EN 10346.

TypeNBNominal load
[kN]		ConnectionD [mm]H [mm]
33,7 1" 2,0 M10 34 65
42,4 1" 1/4 2,0 M10 43 65
48,3 1" 1/2 2,0 M10 49 70
60,3 2" 2,0 M10 61 79
76,1 2" 1/2 3,5 M10 77 98
88,9 3" 3,5 M10 90 113
114,3 4" 3,5 M10 115 142
139,7 5" 5,0 M12 142 153
168,3 6" 5,0 M12 170 184
219,1 8" 8,5 M16 221 236



Approvals

FM and VdS (No. G4850025) approved.



PIPE LOOP RSL N
Code Name Weight Number of pieces
102126 33,7 1'' 0.06 100 Information request
102135 42,4 1 ¼'' 0.06 50 Information request
102144 48,3 1 ½'' 0.06 50 Information request
102153 60,3 2'' 0.07 50 Information request
102320 76,1 2 ½'' 0.14 25 Information request
102339 88,9 3'' 0.16 25 Information request
102357 114,3 4'' 0.19 25 Information request
102375 139,7 5'' 0.22 25 Information request
102393 168,3 6'' 0.26 25 Information request
102409 219,1 8'' 0.56 10 Information request
