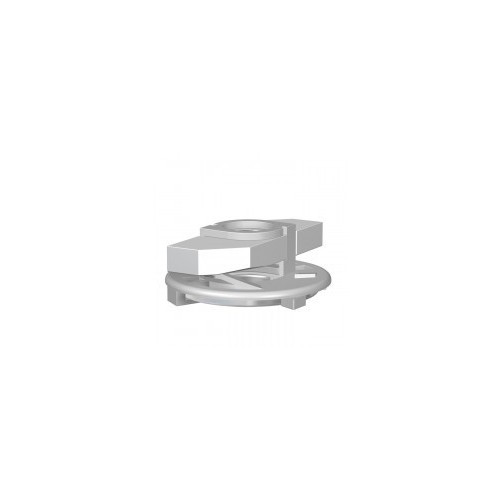

CHANNEL NUT CLICK-EASY

CHANNEL NUT CLICK-EASY

Application

Suitable for profiles with width 30 and 32 mm. It allows a quick and easy installation thanks to the particular shape of the plastic. Consists of a channel nut, a washer and a plastic element that holds together nut and washer. E 'suitable for use with threaded rods DIN 975.



Installation

Enter into the profile and turn 90 ° until it clicks.



Technical data

Material: Steel cold-worked and electro-galvanised .

Nut dimensions: 36 x 13.8


TypeMax. adm. load [kN]Washer [mm]
M6 1,7 28 x 6,6
M8 1,7 28 x 8,6
M10 1,7 28 x 10,6







Code Name Weight Number of pieces
80361 M 8 0.02 50 Information request
80362 M10 0.02 50 Information request
