COLUMN FOR ROOF DF AV
Application

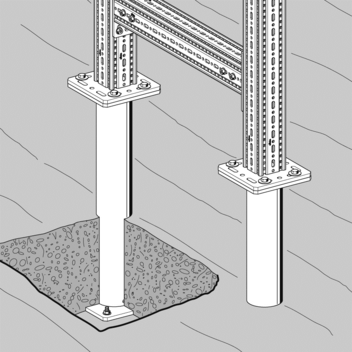

Enables direct connection of constructions with siFramo by means of WBD brackets F 80/100 of size 80/120 or support brackets F 80/100 on various roof types.
Mounting
Connection of WBD brackets F 80/100 - 80/120 and TKO F 80/100 by means of 4 hexagonal bolts M12 and suitable washers and nuts.
Fastening on roofs and on concrete by means of heavy-duty anchors M12.
Important: The zinc drain holes in the support tube must be sealed after installation. If insulation is required in the support tube, it can be provided by the customer, e.g. by foaming.
Technical data

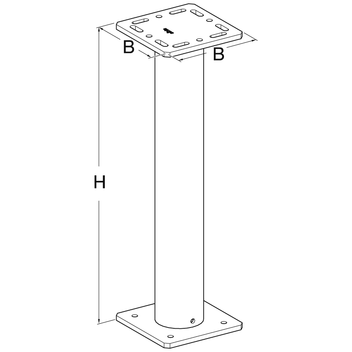

| B [mm] | H [mm] |
| 220 | 750 |
| Dimensions of base plate W x W x d [mm] |
Hole for anchor |
| 220 x 220 x 12 | M12 |
Material: steel, HCP
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 117170 | DF AV | 20.50 | 1 | Information request |
