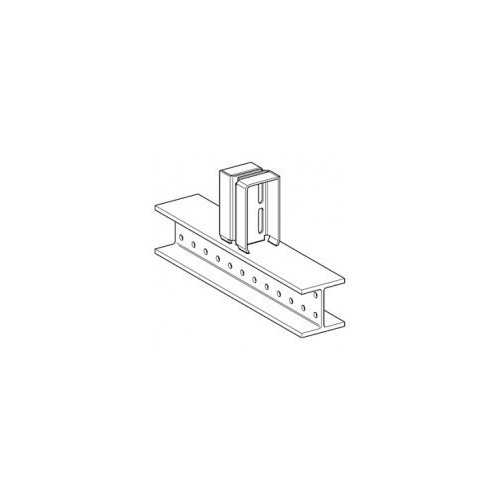

T-ADAPTER TA

T-ADAPTER TA

Download PDF
Information request

Application

In combination with Beam Bracket TKO 100, the T-Adapter allows different T-structures on the floor or hanging T-structures without need of further accessories. Oblong holes permit a simple compensation up to 50 mm on structural situations.



Scope of delivery

T-Adapter TA 100 Accessories:

- 4 Hexagon Bolts M12 x 45;

- 4 Hexagon Nuts M12 ;

- 8 Washers.



Technical Data

Configuration:  Beam 100 welded to beam holder.



Material:

- TA 100: Steel, hot-dipped galvanised;

- Bolts: Steel, class 8.8, hot-dipped galvanised ;

- Nuts: Steel, class 8, hot-dipped galvanised;

- Washers: Steel, hot-dipped galvanised.



T-ADAPTER TA
T-ADAPTER TA
Code Name Weight Number of pieces
191081 TA 100×400 L=200 mm 5.05 1 Information request
191166 TA 100×400 L=400 mm 8.35 1 Information request
191099 TA 100×400 L=600 mm 11.80 - Information request
193112 TA 100×400 L=200 mm 8.10 - Information request
193129 TA 100×400 L=400 mm 13.95 - Information request
193136 TA 100×400 L=600 mm 18.95 - Information request
