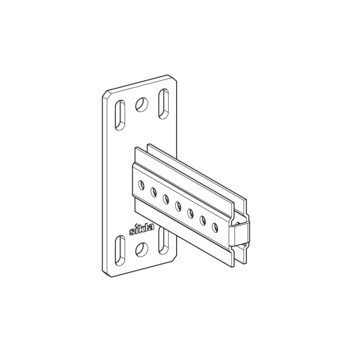

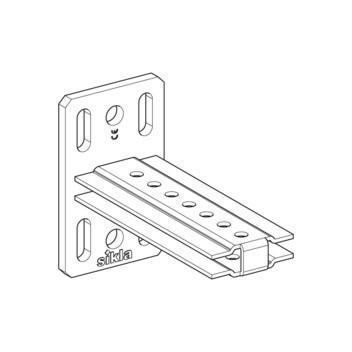

END SUPPORT STA F 80/30
Application
Plug-in component designed to create an endplate at the open end of a Beam Section TP F80/30 a Cantilever bracket AK F80/30.
Installation
The Beam Section TP F 80/30 connected to the End Support STA F 80/30 E has to be screwed with 2 Self Forming Screws FLS F.
Technical Data
| Type | Dimensions of Base plate [mm] | Slots in Base plate for | H [mm] |
|---|---|---|---|
| STA F 80/30-80-E | 80 x 80 x 8 | M10 | 178 |
Material: Steel, HCP.
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 117294 | STA F 80/30-E | 1.40 | 1 | Information request | |
| 113066 | STA F 80/30-E | 0.60 | 1 | Information request |
