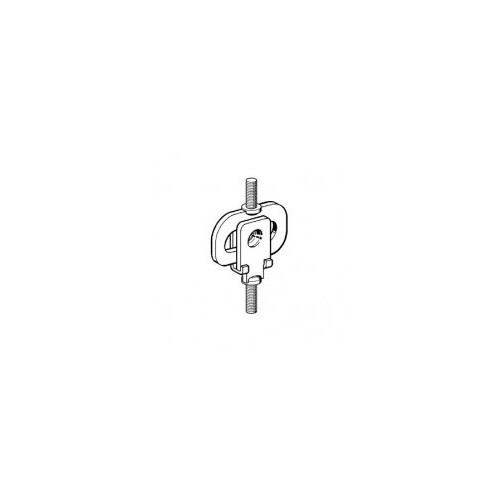

SLIDE ELEMENT GLE LC

SLIDE ELEMENT GLE LC

Application

Suspension slide element which can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Channels.

Pendular function allows for slight lateral movements.

The slide roller located in the suspending section provides for smooth, jerk-free and silent sliding.

For Type LC-A an additional extension is not needed, if a directed preselection of the thread length is done; especially suitable for different isolation.



Scope of delivery

Completely pre-assembled.



Installation

Type LC-I allows for height adjustment by offering a screw depth of up to 15 mm.

For fixing the position of the Slide Element, a locking nut has to be used.



Technical Data

Working load (tension): 1 kN

Sliding distance: max. 25 mm

Maximum swinging angle: 2°

Material: Steel, electro-galvanised



TypeThread connection to
building structure
Thread connection to
system x L
Height H
[mm]
LC-A 22 M8 x 22 M8 x 22 76
LC-I M8 x 22 M8 /15* 68


* range for height adjustment


SLIDE ELEMENT GLE LC
SLIDE ELEMENT GLE LC
Code Name Weight Number of pieces
151069 LC-A 0.09 100 Information request
151078 LC-IF 0.09 100 Information request
