ADAPTER AD F/F

ADAPTER AD F/F

Download PDF
Information request

Application

Additional connection options for all Sikla Pipe Clamps equipped with 3G triple thread nut, fixed points and threaded tubes.



Technical Data

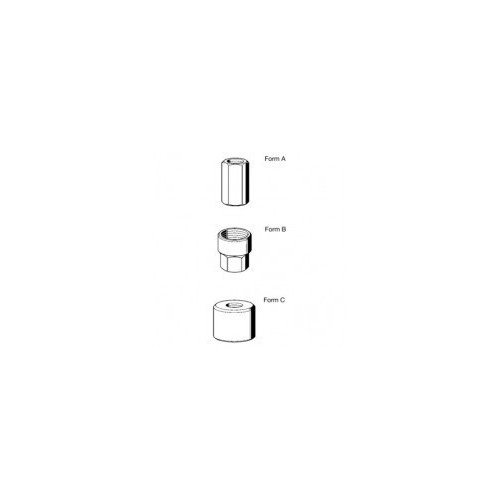

Material:

- Type A: Steel, electro-galvanised;

- Type B: Malleable cast iron, electro-galvanised;

- Type C: Steel, electro-galvanised.













Code Name Weight Number of pieces
106740 F16/F10 L=35 mm 0.05 50 Information request
124665 F16/F12 L=35 mm 0.04 50 Information request
106290 F16/F16 L=30 mm 0.03 50 Information request
146335 3/8''/F16 L=40 mm 0.04 25 Information request
146371 1/2''/F10 L=35 mm 0.07 10 Information request
156639 1/2''/F12 L=35 mm 0.07 10 Information request
124656 1/2''/F16 L=40 mm 0.07 25 Information request
146380 1/2''/1/2'' L=35 mm 0.05 10 Information request
105651 3/4''/F10 L=35 mm 0.16 10 Information request
105749 3/4''/F12 L=35 mm 0.16 10 Information request
105660 3/4''/F16 L=35 mm 0.15 10 Information request
146344 1/2''/3/8'' L=40 mm 0.06 25 Information request
146399 3/4''/1/2'' L=35 mm 0.12 10 Information request
105679 1''/F10 L=40 mm 0.13 10 Information request
146353 3/4''/3/8'' L=35 mm 0.14 25 Information request
105758 1''/F12 L=40 mm 0.13 10 Information request
146362 1''/3/8'' L=40 mm 0.12 25 Information request
105688 1''/F16 L=40 mm 0.12 10 Information request
146405 1''/1/2'' L=40 mm 0.12 10 Information request
