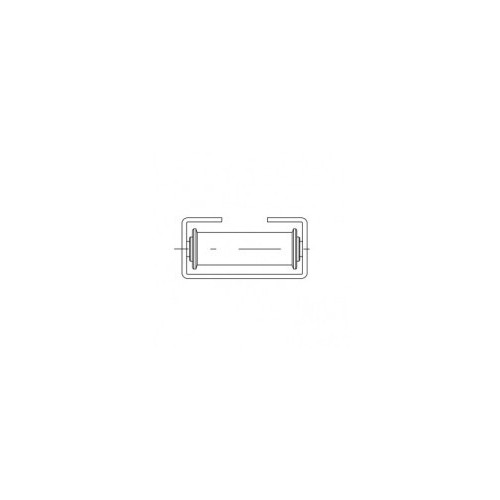

CYLINDRICAL ROLLER PN

CYLINDRICAL ROLLER PN

Download PDF
Information request

Application

For the sliding of pipes subject to expansion without isolation. To be used only in support with the combination of a saddle.



Installation

It is connected to the system by welding.



Technical Data

Materials:

- Cage: Fe360;

- Roller: in carbon steel;

- Pin: Stainless steel AISI 303;

- Bushings: in sintered bronze, self-lubricating;

- Treatment: zinc plating.



TypeDiam. [mm]Max adm. load [kN]A [mm]B [mm]C [mm]E [mm]F [mm]H [mm]r/F
PN 1 0 - 80 6,0 89 82 62 40 35 30 0,050
PN 2 80 - 180 8,0 97 90 65 64 40 48 0,050
PN 3 180 - 300 15,0 142 135 99 100 65 76 0,045
PN 4 300 - 500 25,0 198 190 145 130 90 99 0,045

r = radial friction force
r / F = coefficient of friction axial

Code Name Weight Number of pieces
127284 PN 1 10 - 80 mm 0.40 1 Information request
127290 PN 2 80 - 180 mm 0.72 1 Information request
