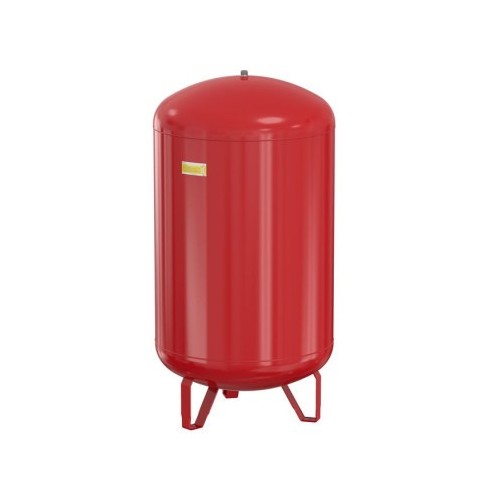

FLEXCON SOLAR 10 BAR
Technical Specifications
All welded construction.
Red (RAL 3002) epoxy powder coating.
Maximum working pressure: 10.0 bar.
Vessels in accordance with EN13831.
Suitable for systems with a maximum flow temperature of 120 °C.
Maximum temperature diaphragm: 110 °C.
Suitable for addition of glycol-based anti-freeze up to 50%.
In accordance with Pressure Equipment Directive 2014/68/EU.
Diaphragm: butyl rubber.
Flexcon Solar 110 - 300: including mounting kit.
Warranty 5 year.
| Type | Capacity [litri] | Precharge [bar] | Ø [mm] | H [mm] | Connection (M) |
|---|---|---|---|---|---|
| Flexcon Solar 110 | 110 | 3 | 484 | 784 | 1" |
| Flexcon Solar 140 | 140 | 3 | 484 | 950 | 1" |
| Flexcon Solar 200 | 200 | 3 | 600 | 960 | 1" |
| Flexcon Solar 300 | 300 | 3 | 600 | 1330 | 1" |
| Flexcon Solar 425 | 425 | 3 | 790 | 1180 | 1" |
| Flexcon Solar 600 | 600 | 3 | 790 | 1540 | 1" |
| Flexcon Solar 800 | 800 | 3 | 790 | 1888 | 1" |
| Flexcon Solar 1000 | 1000 | 3 | 790 | 2268 | 1" |
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 16067 | 110 L | 40 | - | Information request | |
| 16068 | 140 L | 47 | 8 | Information request | |
| 16069 | 200 L | 60 | - | Information request | |
| 16070 | 300 L | 78 | - | Information request | |
| 16071 | 425 L | 108 | - | Information request | |
| 16072 | 600 L | 138 | - | Information request | |
| 16073 | 800 L | 178 | - | Information request | |
| 16074 | 1000 L | 220.50 | - | Information request |
