PROVENT
Application

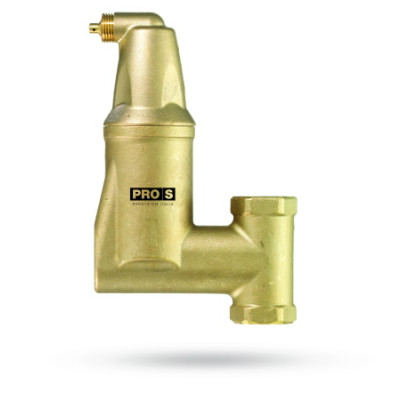

Provent in-line deaerators are suitable for closed-circuit heating or cooling systems. They expel air, microbubbles and other gases from the system, quickly, automatically and reliably.
Equipped with a special MicroSmart Screen stainless steel mesh.
PROvent must be installed with the pipe in a horizontal position.
|
Technical Data |
Provent |
|
Body: |
Brass |
|
Connections: |
threaded 1”-2” |
|
Max. operating temperature: |
110 ° C |
|
Max. operating pressure: |
10 bar |
|
Model |
Position |
H [mm] |
h [mm] |
L [mm] |
|
3/4” |
orizz. |
|
|
|
|
1” |
orizz. |
162 |
40 |
85 |
|
1”¼ |
orizz. |
164 |
41 |
88 |
|
1”½ |
orizz. |
188 |
45 |
99 |
|
2” |
orizz. |
188 |
46 |
99 |
|
1" |
vert. |
210 |
86 |
137 |
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 32460 | Provent 3/4'' | 1.38 | 6 | Information request | |
| 32461 | Provent 1'' | 1.70 | 1 | Information request | |
| 32462 | Provent 1 1/4'' | 1.70 | 1 | Information request | |
| 32463 | Provent 1 ½'' | 1.70 | 1 | Information request | |
| 32464 | Provent 2'' | 1.70 | 1 | Information request | |
| 32466 | Provent 1'' | 3.30 | 1 | Information request |
