AIRFIX D-E PN10

AIRFIX D-E PN10

Download PDF
Information request

Application

High quality vessels for use in all (potable) water installations. The inside of the Airfix connection flange has a special coating which prevents oxidation.

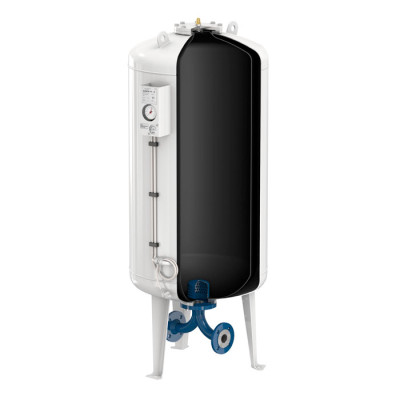

With replacable bladder

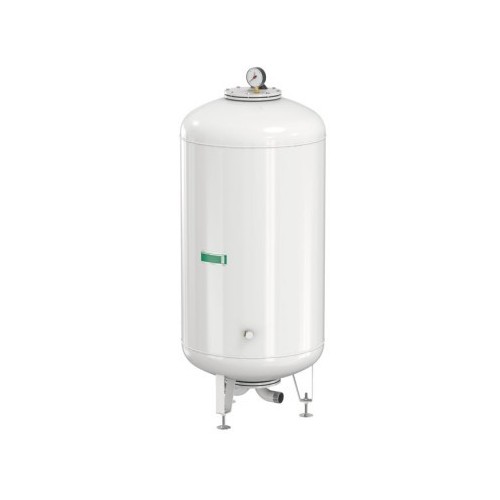

Airfix D-E 100 - 1000: Delivered with pressure gauge, sight-glass, threaded flow through armature and height adjustable feet.

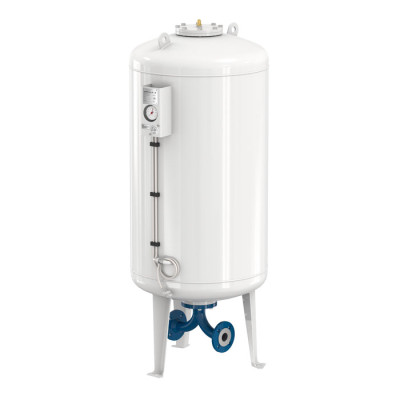

Airfix D-E 1600 - 3000: With electronic diaphragm rupture sensor and flanged connections.



Technical Data

Max. working temperature: 70 °C (EN13831)

Max. working pressure: 10 bar

Precharge 6 bar



Approvals

- CE 0045 in according with PED 97/23/EC

- DVGW and WRAS  certified

- Accordant to European Directive 2002/16/CE

Type Capacity [litri] Ø [mm] H [mm] Connection (2x) Flange PN16 (2x)
Airfix D-E 100 100 484 897 G 1 1⁄2" M -
Airfix D-E 200 200 600 1075 G 1 1⁄2" M -
Airfix D-E 300 300 790 1287 G 1 1⁄2" M -
Airfix D-E 400 400 600 1444 G 2" M -
Airfix D-E 600 600 790 1647 G 2" M -
Airfix D-E 800 800 790 1994 G 2" M -
Airfix D-E 1000 1000 790 2345 G 2" M -
Airfix D-E 1600 1600 1000 2663 - DN 80
Airfix D-E 2000 2000 1200 2412 - DN 80
Airfix D-E 3000 3000 1200 3312 - DN 80

AIRFIX D-E PN10
AIRFIX D-E PN10
Code Name Weight Number of pieces
14750 38 1 Information request
14751 51 1 Information request
14752 65 1 Information request
14754 110 1 Information request
14755 148 1 Information request
14756 170 1 Information request
14812 120 L 86 - Information request
14818 180 L 116 - Information request
14824 240 L 136 - Information request
14830 300 L 156 - Information request
14880 800 L 277 - Information request
14916 1600 L 565 - Information request
14920 2000 L 635 - Information request
14930 3000 L 820 - Information request
