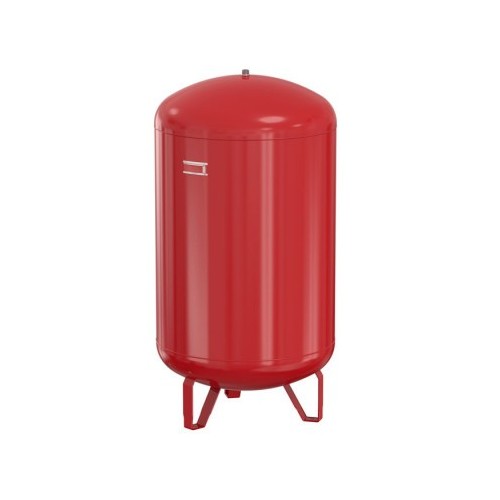

FLEXCON TOP 110-1000 PN10
Application
High pressure alternative for use in sealed heating installations (acc. to EN12828) and chilled water (cooling) installations.
Diaphragm: butyl rubber.
Technical Data
Maximum working pressure: 10.0 bar.
Vessels in accordance with EN13831.
Suitable for systems with a maximum flow temperature of 120 °C.
Maximum temperature diaphragm: 90 °C.
Suitable for addition of glycol-based anti-freeze up to 50%.
All welded construction.
Red (RAL 3002) epoxy powder coating.
Flexcon Top 110 - 300: including mounting kit.
Approvals
In accordance with Pressure Equipment Directive 2014/68/EU.
| Type | Capacity [L] | Precharge [bar] | A [mm] | B [mm] | ØC [mm] | ØD [mm] |
| Flexcon Top 110 | 110 | a richiesta | 484 | 784 | 360 | R 1" |
| Flexcon Top 140 | 140 | a richiesta | 484 | 950 | 360 | R 1" |
| Flexcon Top 200 | 200 | a richiesta | 600 | 960 | 450 | R 1" |
| Flexcon Top 300 | 300 | a richiesta | 600 | 1330 | 450 | R 1" |
| Flexcon Top 425 | 425 | a richiesta | 790 | 1180 | 610 | R 1" |
| Flexcon Top 600 | 600 | a richiesta | 790 | 1540 | 610 | R 1" |
| Flexcon Top 800 | 800 | a richiesta | 790 | 1888 | 610 | R 1" |
| Flexcon Top 1000 | 1000 | a richiesta | 790 | 2268 | 610 | R 1" |
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 16100 | 110 L | 40 | 8 | Information request | |
| 16130 | 140 L | 47 | - | Information request | |
| 16190 | 200 L | 55 | - | Information request | |
| 16290 | 300 L | 78 | - | Information request | |
| 16410 | 425 L | 108 | - | Information request | |
| 16590 | 800 L | 138 | - | Information request | |
| 16790 | 600 L | 187 | - | Information request |
