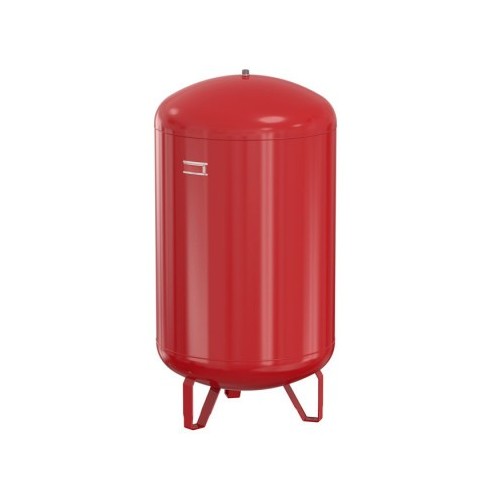

FLEXCON 110-1000 PN6
Application
For sealed heating installations (acc. to EN12828) and chilled water (cooling) installations.
When the temperature in the installation rises, the system water will expand. The ‘expansion water’ is stored temporarily in the expansion vessel to keep the pressure in the installation at the correct level.
Technical Data
Maximum working pressure: 6.0 bar.
Vessels in accordance with EN13831.
Suitable for systems with a maximum flow temperature of 120 °C.
Maximum temperature diaphragm: 70 °C.
Suitable for addition of glycol-based anti-freeze up to 50%.
All welded construction.
Flexcon 110 - 300: including mounting kit.
Red (RAL 3002) epoxy powder coating.
Approvals
In accordance with Pressure Equipment Directive 2014/68/EU.
| Type | Capacity [L] | Precharge [bar] | A [mm] | B [mm] | ØC [mm] | ØD [mm] |
| Flexcon 110 | 110 | a richiesta | 484 | 784 | 360 | R 1" |
| Flexcon 140 | 140 | a richiesta | 484 | 950 | 360 | R 1" |
| Flexcon 200 | 200 | a richiesta | 484 | 1300 | 450 | R 1" |
| Flexcon 300 | 300 | a richiesta | 600 | 1330 | 450 | R 1" |
| Flexcon 425 | 425 | a richiesta | 790 | 1180 | 610 | R 1" |
| Flexcon 600 | 600 | a richiesta | 790 | 1540 | 610 | R 1" |
| Flexcon 800 | 800 | a richiesta | 790 | 1888 | 610 | R 1" |
| Flexcon 1000 | 1000 | a richiesta | 790 | 2268 | 610 | R 1" |
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 16110 | 110 L | 24.30 | 8 | Information request |
