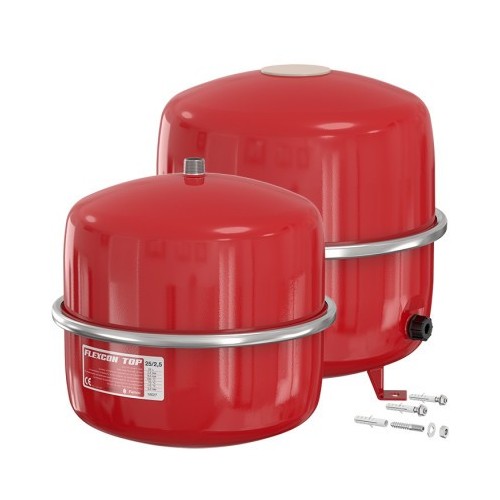

FLEXCON TOP
Technical data
Max. operating pressure: 6.0 bar.
Vessels in accordance with EN13831.
Suitable for systems with a maximum flow temperature of 120 °C.
Max. temperature diaphragm: 90 °C.
Deep drawn zinc plated steel clench ring.
Suitable for addition of glycol-based anti-freeze up to 50%.
Red (RAL 3002) epoxy powder coating.
In accordance with Pressure Equipment Directive 2014/68/EU.
| Type [L] | Precharge [bar] | A [mm] | B [mm] | Ø C [mm] | D [mm] | E |
|---|---|---|---|---|---|---|
| 2 | 2,5 | 216 | 144 | - | - | R 3⁄4" |
| 4 | 2,5 | 216 | 194 | - | - | R 3⁄4" |
| 8 | 2,5 | 245 | 280 | - | - | R 3⁄4" |
| 12 | 2,5 | 286 | 313 | - | - | R 3⁄4" |
| 18 | 2,5 | 328 | 306 | - | - | R 3⁄4" |
| 25 | 2,5 | 358 | 359 | - | - | R 3⁄4" |
| 35 | 2,5 | 396 | 435 | 263 | 117 | R 3⁄4" |
| 50 | 2,5 | 437 | 492 | 263 | 132 | R 3⁄4" |
| 80 | 2,5 | 519 | 540 | 360 | 142 | R 1" |
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 13203 | Flexcon Top da 6 bar | 2.10 | - | Information request |
