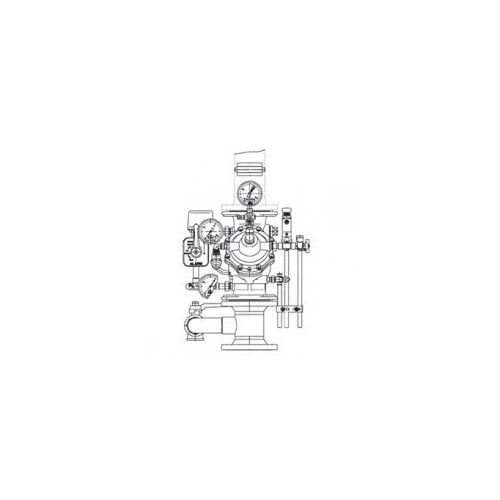

DELUGE VALVE FSX WITH PNEUMATIC ACTUATION

DELUGE VALVE FSX WITH PNEUMATIC ACTUATION

Download PDF
Information request

Application

The deluge system is normally used both for deluge systems to protect areas and large surfaces and systems to protect localized areas and surfaces such as cooling tanks and water blades. The deluge system is also compatible for use in foam systems at low, medium and high expansion. The implementation is done through the opening of an air line.

Application on any type of installation.



Scope of delivery

The standard version comes fully assembled and complete with body deluge valve (connection with flanged or grooved), trim, gauges and pressure switch, pneumatic actuation. Are excluded from the supply gate valves and the water motor.



Technical Data

Actuation:pneumatic

Max permissible pressure: 16 bar

Working temperature: Max 60°C

Water supply pressure according to the flow rate:

min. 2.0 bar: up to 5 m/s

min. 2.5 bar: 5-7 m/s

min. 3.0 bar: 7-8 m/s

min. 3.8 bar: 8-10 m/s

Allarm: dry contact 1 NC, 1 NO.

Drain valve: K2, K20.

Flange connection dimensions: DIN 2501






DNEquivalent Lenght [m]A [mm]B[mm]H1 [mm]H2 [mm]
50 3,1 310 230 430 300
80 7,1 315 295 460 320
100 12,0 335 310 500 350
150 26,9 355 390 580 480
200 23,8 385 420 670 600



Approvals

CE, VdS, Gost-R, FM.



Code Name Weight Number of pieces
850080 DN 50 F/F 29.80 - Information request
850097 DN 80 F/F 42 - Information request
850100 DN 80 F/F 51.10 - Information request
850115 DN 100 F/F - - Information request
850118 DN 100 F/F 64 - Information request
850134 DN 150 F/F 91.60 - Information request
850136 DN 150 F/F 109.10 - Information request
850151 DN 200 PN10 F/F - - Information request
850153 DN 200 PN10 F/F 136 - Information request
850168 DN 200 PN16 F/F 164.50 - Information request
